800MHz高速數(shù)據(jù)采集及回放系統(tǒng)

The Big River? LTX3 recording system provides up to 800 MB/s recording and playback performance in a compact, power efficient package. At 17” in width and 20” in depth and 1.75” tall, the LTX3 provides a new level of exceptional performance and capacity for mobile, portable or space constrained recording and playback applications.

The system can operate independently from a host computer with command/control performed over a network connection. Control can also be automated from a software application using the StreamStor? software API from a network connected computer. Cabled PCIe provides connectivity to a host computer for command/control and/or data access.

When configured with Solid State Drives, the system provides a robust platform with shock and vibration tolerance. The drive shelf is isolated from the chassis and unique wedge locks secure each drive.

The Front panel status display provides key operational parameters including drive status, temperature conditions and possible error conditions.

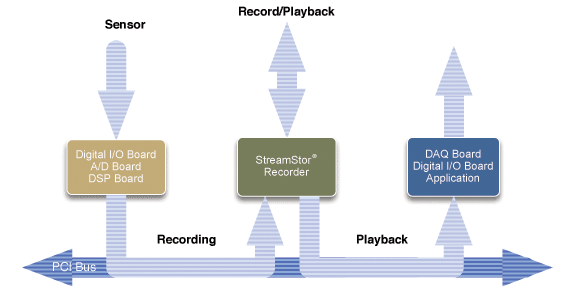

Based on the StreamStor? Amazon Express architecture, the LTX3 supports all of the same external interface mezzanine cards as the Amazon Express platform. This includes Serial FPDP, LVDS and 10GigE.
