100MHz高速數字信號記錄儀
產品簡介： LOG是100MHs 高速數據記錄器用于從嵌入式電子系統數字總線和數據記錄。先進的過濾/數據存儲資格選項巨大的8M緩沖區數據記錄存儲體，幾乎無限的數據儲存在您的電腦。
售價：￥16800
元培翻譯產業情報:LOG Storm數據記錄儀極具數據過濾性能，可使用USB 2.0連接存儲數據，將數據傳輸至個人電腦，并連續使用較長時間。該裝置提供了高達100兆赫的采樣率，可瞬間生成千兆字節信息。
據了解，該裝置可用作專門的軟件/硬件組合，允許設計工程師連續數小時或數天收集高速數字總線信息。LOG Storm的應用包括不間斷的過濾數據包標題評估，長期總線監測，單個程序啟動信息監測，實驗室內開發，IP評估和安裝后方法。LOG Storm Studio軟件兼容LOG Storm數據記錄裝置。
LOG Storm is a high-speed data logger used for recording activity from embedded electronic system digital bus and data lines. Record during hours and days. Extract specific events from bus traffic.
Benefits
- always ON / always-recording
- advanced filtering / data storage qualification options
- huge 8 MSample local buffer in data logger hardware
- virtually unlimited data storage on your PC
Highlights

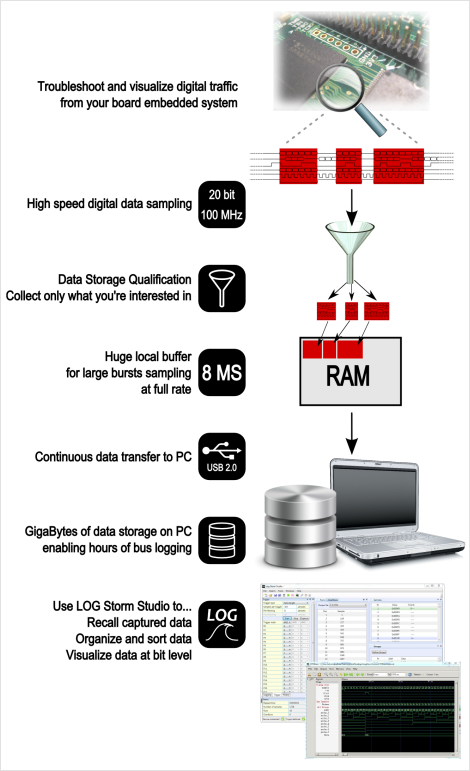

Compared to other test and debug instruments, LOG Storm offers unique and unprecedented visibilty from PC over digital embedded systems.
Large memory buffer and usable direct storage on to a host PC enable hours of logging and the assurance of not missing functional bugs that cause your electronic board or chip to malfunction.
Rich triggering and data filtering options
LOG Sorm提供2種觸發和數據過濾選項
該軟件包包括：1X LOG Storm設備
1個USB到迷你-B電纜
1X包飛導線
為SPI風暴Studio軟件許可證

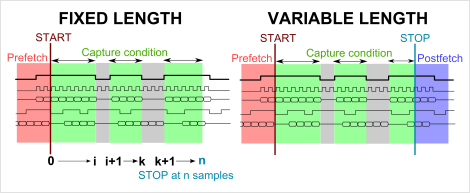

固定的長度觸發器定義一個起始觸發條件和捕獲長度。
Log Strom偵查到START條件后開始收集指定樣本長度的數據。在此之后，它會等待，直到檢測到一個新的START條件。
甚至START條件之前發生的事件可以記錄，通過定義一個預取長度。
此外，可以定義表達式資格必須記錄的數據（下圖中的綠色區域）。
可變長度的觸發不定義捕獲的長度，但需停止條件，和可選POSTFETCH長度。
POSTFETCH長度后LOG Storm會停止直到一個新的START條件。非常類似固定的長度，可用于數據存儲資格。
Fixed length trigger defines a START trigger condition and a capture length. LOG Storm starts recording data upon the detection of the START condition and collects a the specified number of samples. After this, it waits until the detection of a new START condition.
Events occurring before the START condition can be recorded too, by defining a PREFETCH length.
In addition, expressions qualifying which data must be recorded can be defined (green area in the figure below).
Variable length trigger does not define a capture length, but a STOP condition and optionally a POSTFETCH length.
LOG Storm data logger stops after the POSTFETCH length and waits until a new START condition. Similarly to the fixed length, data storage qualification can be used.
LOG Storm Studio software
LOG Storm Studio software is included with LOG Storm device
Platform: Win (XP/7) (32 bit / 64 bit)
Includes: GUI and FREE C/C++ API; GTK Wave waveform viewer.
C/C++ API enables control from within user-defined programs and environments. It notably allows task automation and advanced data processing.
